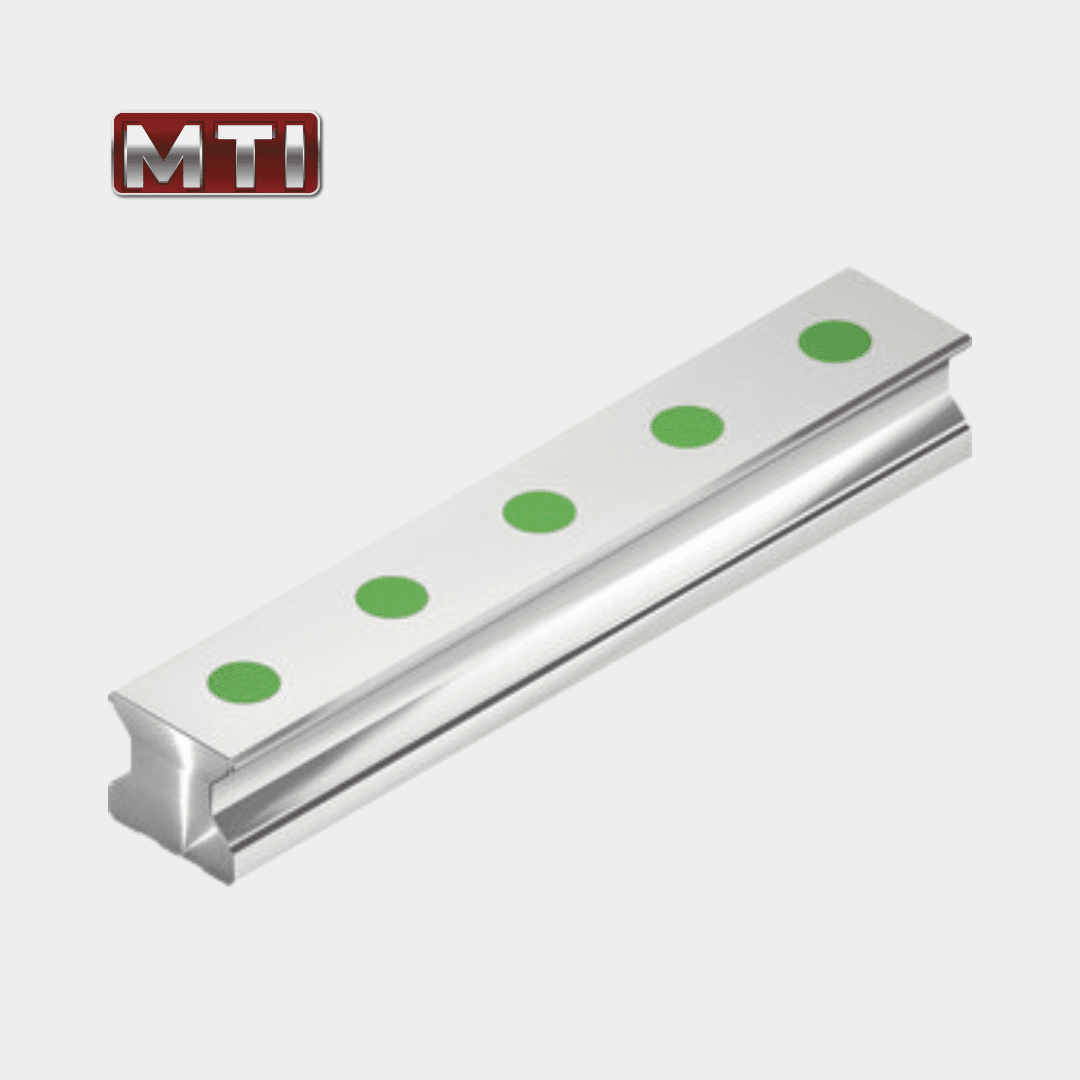

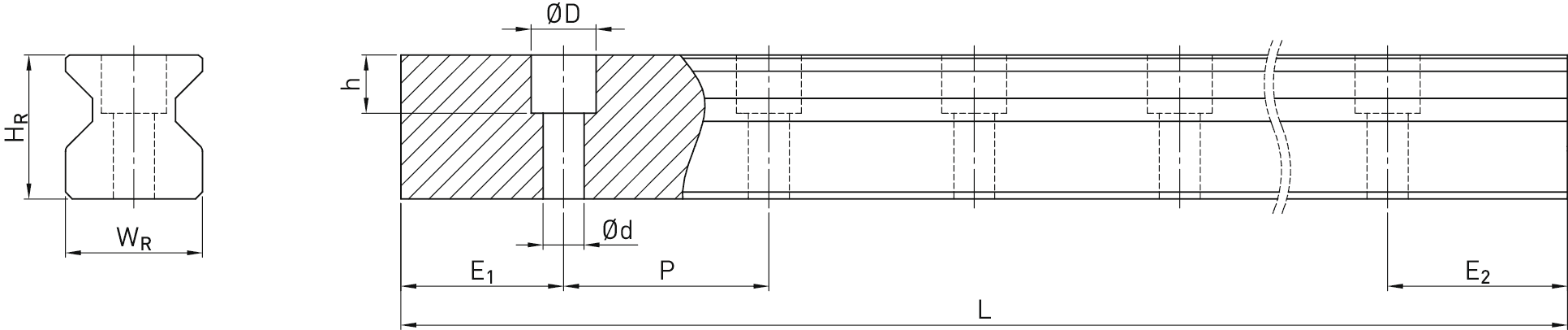

Dimensions
Dimensions
| WR | Rail width | 45 | mm |
| HR | Rail height | 38 | mm |
| D | 20 | mm | |
| h | 17 | mm | |
| d | 14 | mm | |
| P | Hole pitch | 52,5 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.937 | mm |
| Lmin | Min. length | 76,5 | mm |
| E1/2 min | 12 | mm | |
| E1/2 max | 40,5 | mm | |
| Weight | 9,97 | kg/m |
Dimensions (rail in production length)
| L | Total length | 4.000 +20 | mm |
| E1 | 22.5 ±0,5 | mm | |
| E2 | 40 +20 | mm |
Coating
HIWIN coating HICOAT CZS
HICOAT CZS is a very thin zinc coating that offers a very good corrosion protection, even on radii and chamfers. Smaller bare parts stay protected by the cathodic corrosion protection. Compared with uncoated pieces this leads to significantly higher periods of use. The CZS coating is available for the HG, EG and CG series. Further information can be found in the catalogue “Linear Guideways” under chapter “HIWIN coatings for linear guideways”.
HIWIN coating HICOAT CTS
HICOAT CTS is a thin layer chrome coating that offers good corrosion protection and a very high wear protection. The high wear protection results from the extraordinary hardness of the coating. The CTS coating is free of Cr(VI) and suitable for use in food stuffs. It is available for the HG, EG, CG and WE series. Further information can be found in the catalogue “Linear Guideways” under chapter “HIWIN coatings for linear guideways”.
